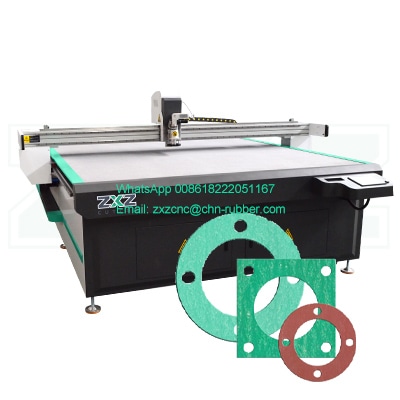

CNC Gasket Cutter 2500x1600mm Rubber Material
Email: zxzcnc@chn-rubber.com
WhatsApp: 008618222051167
We also provide machines with 900*600mm/900*1200mm working area
Using 350W oscillating knife cnc gasket cutter, you can cut asbestos sheet of about 1-10mm. 350W ioscillating knife is a solution for some special hard materials at the same time, especially above 5mm, with faster speed and more precise cutting, which can ensure that some gaskets with higher requirements meet the cutting requirements and use requirements. Of course, if it reaches more than 8mm, we will also adjust the oscillating knife according to the specific information of the cutting material to improve productivity.

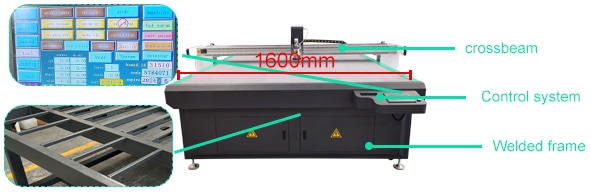

| Effective cutting length | 2500mm |
| Effective cutting width | 1600mm |
| Machine size | 3450×2300×1250MM |
| Translational velocity | 800-1200mm/s |
| Repeated accuracy | ≤0.1mm |
| Voltage | 380V +/-10% |
| Safety device | Using infrared sensors |
| Countertop | Fixed |

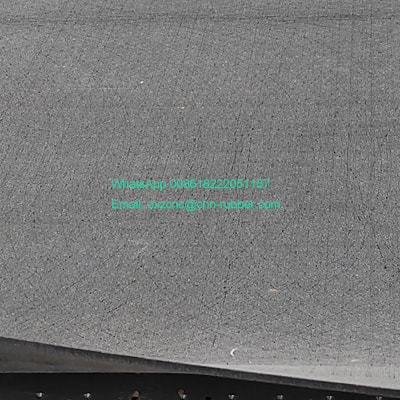

| Cutting tablecloth | High strength felt |
| Motor | DORNA (Can be replaced by Japan's Panasonic, Taiwan's Delta according to cutting requirements) |

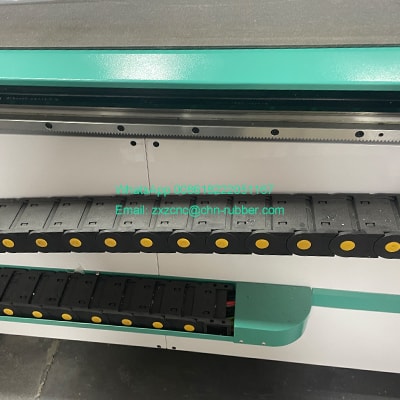

| Cables | IGUS |

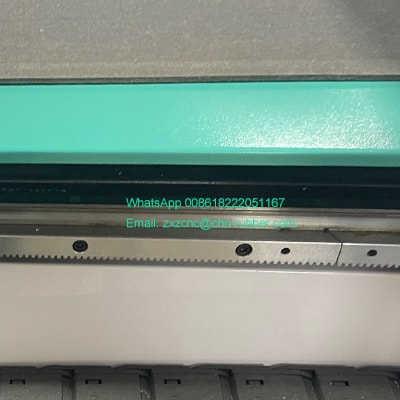

| Rack | Taiwan brand |
| Real-time detection of cutting position | Real-time detection of cutting position, which can monitor the current processing pieces and their positions at any time |

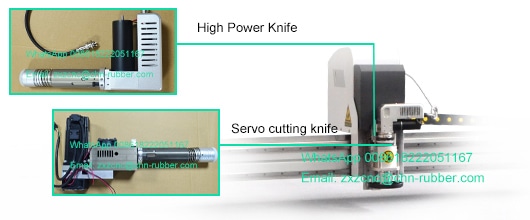

| Feature | High-Power Cutter Head | Servo Cutter |
| Definition | 350W oscillating knife | Cutting tool configuration 400W Servo motor oscillating knife, higher accuracy |
| Advantages | High cost performance | On the basis of fast speed, cutting is more accurate and the range of cutting materials is wide |
| Applications | Cutting thick and dense materials like rubber, metal, or composites. Suitable for tasks where precision is less critical | High-precision cutting tasks in aerospace, electronics, and fine mechanical industries. Ideal for intricate designs and detailed patterns. |
Please contact us:
Email: zxzcnc@chn-rubber.com
WhatsApp: 008618222051167
Tianjin ZXZ CNC cut company provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
