NON-Asbestos compressed fiber gasket cutting machine
Email: zxzcnc@chn-rubber.com
WhatsApp: 008618222051167
This CNC gasket material cutting machine is designed for factories with high requirements and large production batches. It is used to process asbestos-free compressed fiber gaskets with minimum cutting accuracy. It can meet the gasket needs of many industries. Unlike laser cutting machines, for flexible materials, CNC gaske material cutting machine will not produce burnt edges, burr edges, smoke, and can complete production requirements in the shortest time by switching tools. In terms of machine debugging, it is not as complicated as laser cutting machines, and it is easier to use. It is very suitable for factories with no experience but want to achieve automated mass production.
Working area | 2500mm(L)x 1600mm(W) |
Machine size | 3400mm*2210mm*1350mm |
Cutting tool | 400W Servo knife * 1set |

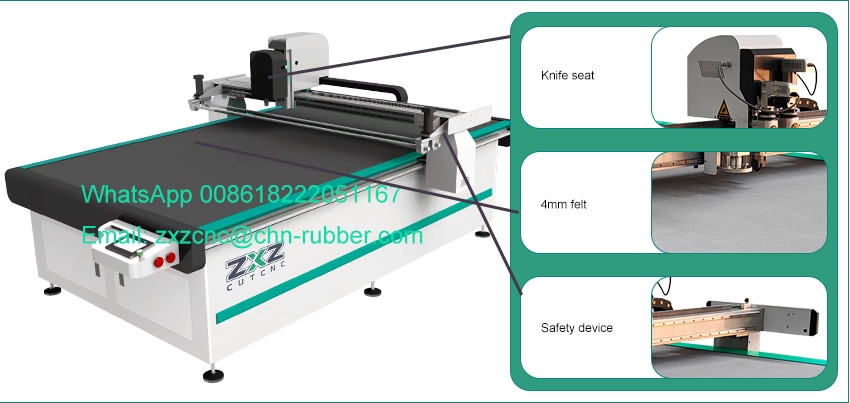

Working table | Netherlands Ammeraal 4mm felt |
Countertop Type | Fixed countertop |
Material fixed way | Aluminum bellows type vacuum adsorption platform |
Cutting thickness | 1mm -5mm |
Feeding thickness | 40mm |
Motor & Drive system | DORNA motor and driver |
Guide rail | Taiwan Brand |
Transmission interface | Internet network port |
Safety device | Infrared blocking stop and anti-collision protection |
Control system | English |
Nesting software | ET automatic nesting module improves utilization rate by more than 20% compared with manual operation |
