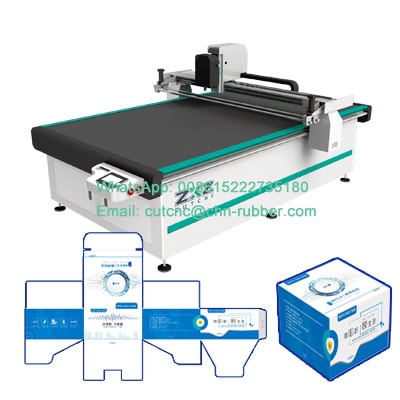

Carton Sample Cutting Table Honeycomb Cardboard Gift Box CNC Cutter

Engineered for precision and efficiency, this model boasts a substantial 1600mm x 2500mm working area, perfectly suited for handling large-format cardboard sheets and optimizing material usage through effective nesting. Its standout feature is the intelligent double knife holder design, which significantly boosts workflow flexibility. This setup allows for the simultaneous equipping of the high-frequency oscillating knife – delivering clean, accurate cuts through various cardboard types – alongside a dedicated creasing tool for creating crisp, precise fold lines. This combination makes it an exceptional CNC cardboard box maker, streamlining the process from digital design to finished product, whether you're producing custom packaging, intricate inserts, or point-of-sale displays with speed and unparalleled accuracy.

Key Features:

1. 1. Dual Tool Head System: Equipped with two cutting for mounting both the oscillating knife and creasing tool simultaneously, minimizing tool change delays and maximizing throughput.
2. 2. Generous Working Area: Offers a large 1600mm x 2500mm processing surface, accommodating standard cardboard sheet sizes and enabling efficient production of larger items or multiple smaller pieces in one run.
3. 3. High-Frequency Oscillating Knife: Provides precise and clean cutting capabilities for a wide range of cardboard materials, ensuring smooth edges even on complex contours and internal cuts.
4. 4. Dedicated Creasing Tool: Creates accurate, high-quality fold lines without damaging the cardboard surface, essential for easy and professional box assembly.
5. 5. Optimized for Cardboard Conversion: Specifically designed as a highly effective cnc cardboard cutting machine and cnc cardboard box maker solution for prototyping, short-run production, and custom jobs.
6. 6. Robust & Accurate CNC Control: Ensures high precision and repeatability for consistent quality across all finished products.

CNC Cardboard Cutting Machine Configuration

Cutting Materials:

Corrugated Cardboard: Single wall, double wall, and triple wall . Ideal for shipping boxes, displays, and structural packaging.

Honeycomb Board / Paperboard: Lightweight yet strong structural material used for packaging, void fill, and displays.

Grey Board / Chipboard: Dense paperboard used for rigid boxes, bookbinding, puzzles, and backing boards.

Cardstock / Folding Carton Board: Materials used for retail packaging, folders, cards, and lighter display elements.

Kraft Paper: Both thick and thin varieties for patterns, wrapping, and lightweight packaging components.

Foam Board / KT Board: Paper-faced foam core board popular for signage, presentations, and model making.

PVC Foam Board (e.g., Sintra, Forex): Lightweight rigid plastic sheet used in signage and display construction (thinner gauges).

EVA Foam / PE Foam: Softer foams used for cushioning, inserts, and gaskets.

Rubber Sheet / Gasket Materials: Can cut various softer rubbers and non-asbestos gasket materials (depending on density and thickness).

Thin Plastics: Certain thin flexible plastics like PP (Polypropylene) hollow sheets or corrugated plastic.

Note: The maximum cutting thickness and optimal results will vary depending on the specific material density, composition, and the tooling configuration used. Always perform test cuts to determine the best settings for your material.
