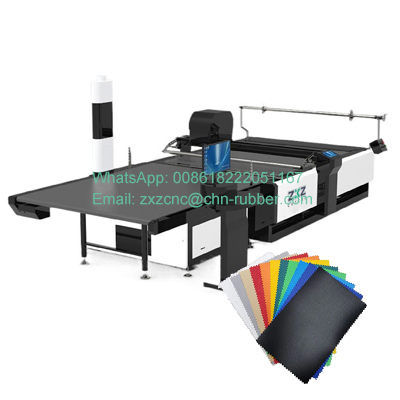

Advanced digital fabric cutting machine, engineered for precision, efficiency, and versatility. Whether you’re in apparel, upholstery, automotive textiles, or technical fabrics, this cutter delivers flawless results that minimize material waste and boost throughput.
1. High-Precision Cutting : Achieves ±0.1 mm accuracy by digitally following CAD patterns, ensuring every cut is razor-sharp and true to design.

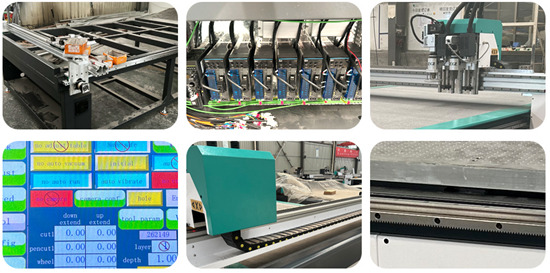

2. Industrial-Grade Construction: Built with reinforced steel framing and heavy-duty components for continuous, reliable operation in demanding production environments.
3. Smart Software Integration: Compatible with DXF, PLT, AI and other common file formats. Import your designs directly into the touchscreen interface for seamless workflow.
4. High-Speed Servo Motors
5. Modular Cutting Heads: Swap in rotary blades, kiss-cut modules, or drag knives to handle leather, rubber, foam, and composite sheets with ease.
8. Easy Maintenance: Tool-free blade changes and a self-diagnostic control system reduce downtime and simplify routine servicing.
| Parameter | ZXZ2516OT |
| Working area | 2500mm x 1600mm |
| Cutting speed | 1200mm/s（Due to different materials,will affect） |
| Cutting tolerance | +/-0.1mm (The tolerance may vary due to different materials) |
| Cutting tool | Oscillating cutting tool / Driven rotary cutting tool / punching tool (V-shape or circle shape) / drawing tool / CCD camera |
| Countertop type | Automatic feeding / Fixed working table |
| Material fixed way | Aluminum bellows type vacuum adsorption platform, partition / follow adsorption |
| Cutting thickness | ≤70mm (Depending on the material, the thickness that can be cut will vary) |
| Rated Power | 9KW |
| Drive system | Servo motor, Linear guide rail, Rack |
| Motor | Delta |
| Nesting software | ET automatic nesting module improves utilization rate by more than 20% compared with manual operation |
| Data Format | DXF,PLT,PDF,AI |
| Transmission interface | Ethernet port |
| Fault detection | Automatically detect electrical faults when powered on and push codes to the system |
| Red preview function | Preview the cutting sample before processing to see if it is in the material to prevent misoperation |
| Projection function | Can install projector |
| Frame structure | Carbon dioxide protected welding bed, secondary vibration aging treatment |
| Voltage | AC 110V/220V/380V±10%, 50HZ/60HZ |
Automotive & Aerospace: Handle technical textiles, composites, and insulation materials to the tightest tolerances. Cost Savings: Digital accuracy reduces off-cuts by up to 20%, lowering raw-material costs. Productivity**: Intuitive controls and fast setup cut labor time and accelerate job changeovers.
For custom configurations or volume pricing on our digital fabric cutting machine, contact our sales team today at zxzcnc@chn-rubber.com.
Tianjin ZXZ CNC cut company provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
