Double modularized cutting tool cnc knife cutting machine asbestos gasket material
Double modularized cutting tool cnc knife cutting machine asbestos gasket material Double modularized cutting tool cnc knife cutting machine asbestos gasket material Double modularized cutting tool cnc knife cutting machine asbestos gasket material

Double modularized cutting tool cnc knife cutting machine asbestos gasket material

Product ID : ZXZRG2516
Product Attributes :

Double modularized cutting tool asbestos gasket material cutting machine

Email: cutcnc@chn-rubber.com

WhatsApp: 008615222735180

Product Description

About cnc knife cutting machine parameter

Working area 1600mm * 2500mm
Machine area 3400mm*2450mm*1400mm
Idle speed 1800mm/s
Cutting precision +/-0.2mm
Cutting tool 400W Oscillating knife * 1set
Working table 40mm felt
Material fixed way Aluminum bellows type vacuum adsorption platform
Feeding thickness 40mm
Motor & Drive system Delta motor and driver
Guide rail Taiwan Brand
Voltage 380V+/-10%
Transmission interface Internet network port
Safety device Infrared blocking stop and anti-collision protection
Red preview function Preview the cutting sample before processing to see if it is in the material to prevent misoperation
Intelligent fault detection Automatically detect electrical faults when powered on and push codes to the system

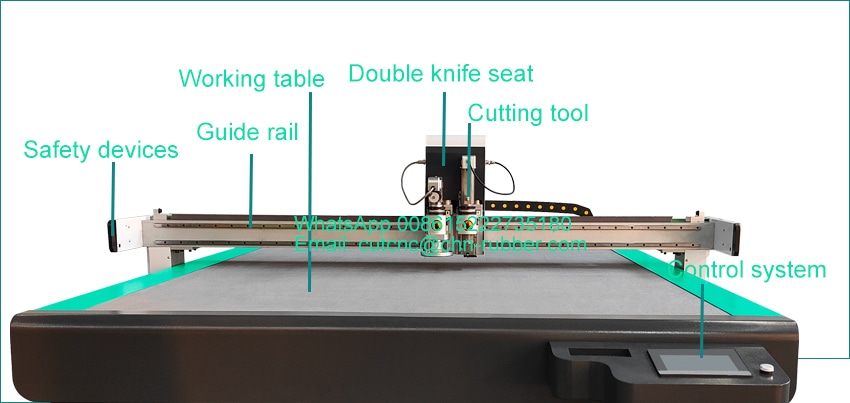

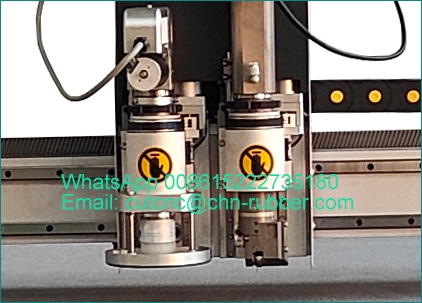

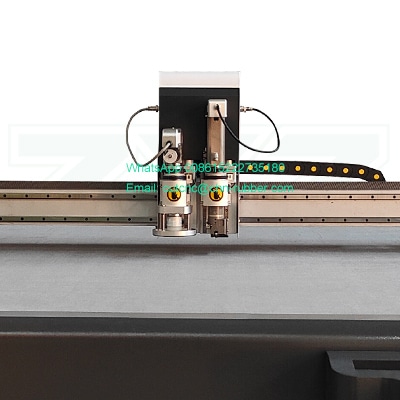

CNC knife cutting machine with double knife seats are designed to enhance the efficiency and versatility of cutting operations, particularly when dealing with various materials and complex designs.  Use Multiple Tools Simultaneously: Each knife seat can hold a different type of cutting tool, such as an oscillating knife and a drag knife, allowing the machine to switch between them as needed during a single cutting operation.

cnc knife cutting machine

The cnc knife cutting machine can be configured to cut different materials or thicknesses without the need to change tools manually, enhancing efficiency.  Can automatically switch between the two knives based on the programmed cutting sequence. This feature is especially useful for cutting different materials or shapes in a single operation.

CNC knife cutting machine with double knife seats offer significant advantages in terms of versatility, efficiency, and quality. Their ability to handle multiple tools and materials in a single operation makes them an ideal choice for industries that require high precision and productivity. By investing in a CNC machine with double knife seats, businesses can enhance their cutting capabilities, reduce operational costs, and improve the overall quality of their products.

cnc knife cutting machine cnc knife cutting machine
